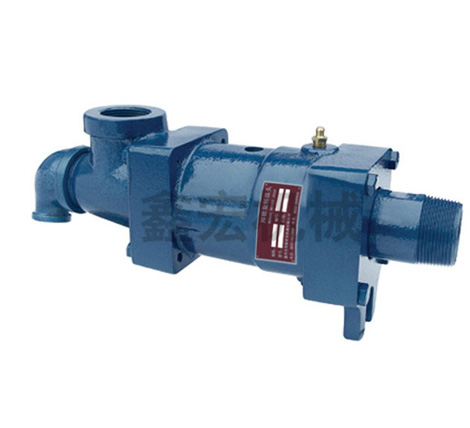

DS-X型旋转接头介绍：
适用范围：
最高转速：≤500RPM
最高温度：≤220℃
最高压力：≤1.8MPa
适用介质：饱和蒸汽、过热蒸汽、过热水

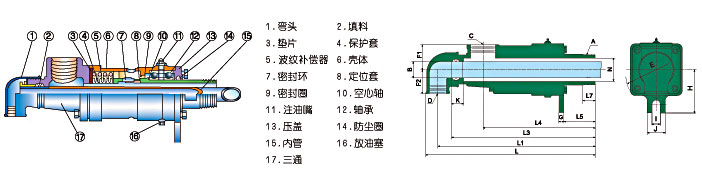

DS-X型旋转接头 双向流通内管固定式——螺纹连接
|
规格
|
型号
|
A
|
B
|
C
|
D
|
E
|
F1
|
F2
|
G
|
H
|
I
|
J
|
K
|
L
|
L1
|
L3
|
L4
|
L5
|
L7
|
N
|
|
15
|
DS-X15-6
|
R1/2
|
10
|
Rc3/8
|
Rc1/2
|
79
|
29
|
25
|
8
|
55
|
14
|
34
|
15
|
217
|
204
|
191
|
156
|
42
|
20
|
14
|
|
20
|
DS-X20-8
|
R3/4
|
12
|
Fc1/2
|
Rc1/2
|
89
|
34
|
30
|
10
|
65
|
18
|
38
|
15
|
244
|
229
|
215
|
175
|
45
|
22
|
18
|
|
25
|
DS-X25-10
|
R1
|
16
|
Rc3/4
|
Rc1/2
|
110
|
42
|
33
|
10
|
70
|
14
|
40
|
28
|
303
|
288
|
273
|
223
|
63
|
25
|
25
|
|
32
|
DS-X32-15
|
R1-1/4
|
19
|
Rc1
|
Rc1/2
|
119
|
44
|
38
|
11
|
82
|
18
|
48
|
47
|
311
|
294
|
293
|
224
|
57.5
|
28
|
32
|
|
40
|
DS-X40-20
|
R1-1/2
|
25
|
Rc1-1/4
|
Rc3/4
|
125
|
60
|
43
|
10
|
92
|
20
|
50
|
48
|
353
|
335
|
328
|
253
|
60
|
30
|
38
|
|
50
|
DS-X50-25
|
R2
|
31
|
Rc1-1/2
|
Rc1
|
267
|
54
|
51
|
10
|
95
|
18
|
42
|
49
|
358
|
338
|
331
|
254
|
66
|
32
|
48
|
|
65
|
DS-X65-32
|
R2-1/2
|
40
|
Rc2
|
Rc1-1/4
|
186
|
70
|
62
|
14
|
120
|
20
|
50
|
59
|
422
|
394
|
383
|
295
|
72
|
42
|
64
|
|
80
|
DS-X80-40
|
R3
|
46
|
Rc2-12
|
Rc1-1/2
|
207
|
75
|
72
|
16
|
130
|
24
|
54
|
71
|
501
|
465
|
443
|
338
|
94
|
45
|
75
|
